Drone Wars: China’s Rainbow Drone Unveiled

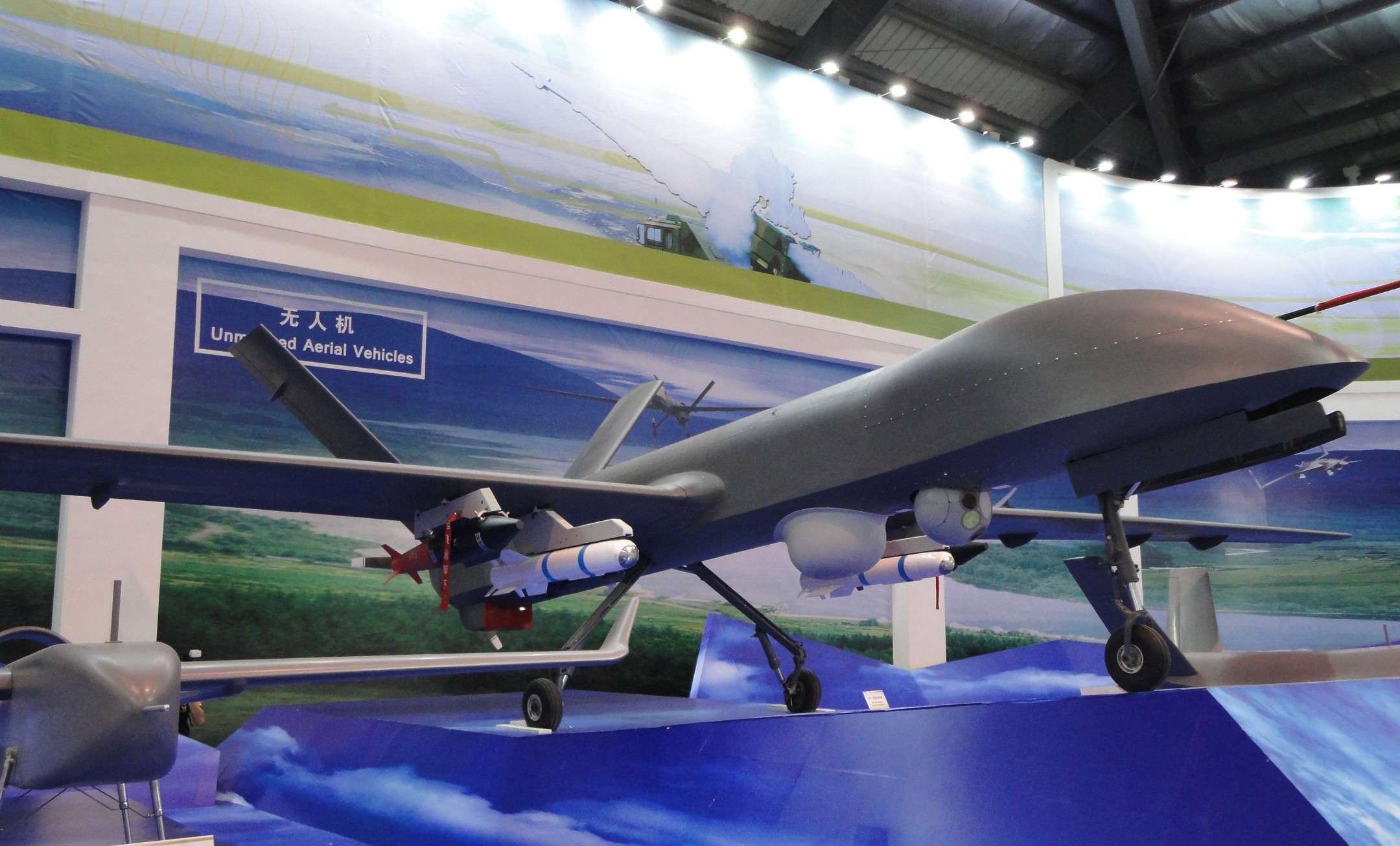

CH-4RainbowAs part of their ongoing efforts to become a world power, China has spared no investment when it comes to the development of Unmanned Aerial Vehicle (UAV) technology. And after several successful missile tests, the People’s Liberation Army (PLA) is all set to receive the next-generation aerial drone. Known as the CH-4, the development of this UAV is just the latest in China’s attempt to catch up to western developers.

Although China’s drone technology may be several years behind top manufacturers in the US and Israel, the country’s UAV manufacturers are hoping that their mid-range prices and middling technology will lure potential customers from developing nations. During the unveiling, which took place at the beinnial Zhuhai Air Show in late August, officials from Kenya, Russia and other countries were on hand to witness this an other examples of China’s exportable UAVs.

CH-4Rainbow2 Representatives from China Aerospace Long-March International, a division of the state-owned China Aerospace Science and Technology Corporation (CASC), were on hand at the presentation and spoke with relative candor about the CH-4 and two other drones the company was showing for the first time. Guo Qian, a director at a division of CASC, when talking about the interest and marketability of the company’s military grade drones, had the following to say:

We’ve been contacting many countries, especially from Africa and Asia. They are quite interested in the intermediate and short-range UAVs because they are portable and low-cost.

Similarly, Li Pingkun , the head of the Rainbow 4 project at the aerospace corporation, told state television the drone could make a long-distance hit on a target with a margin of error of less than 1.5 metres. He said the system was very precise because it used several methods to guide missiles or smart bombs to their target. As he told ChinaNews, the drone is “well-positioned to carry out the subsequent missions.”

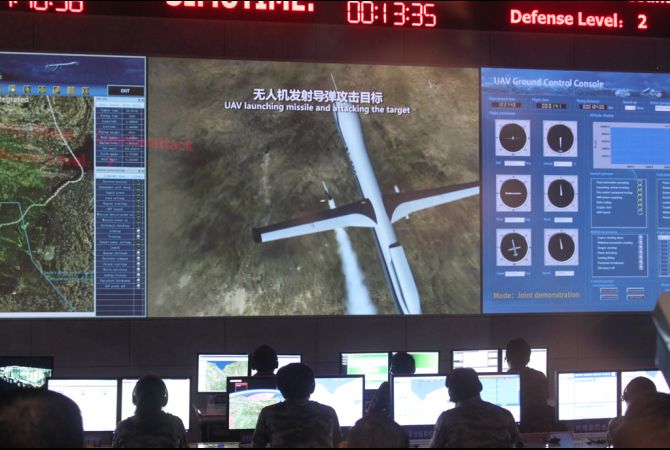

CH-4Rainbow1The unveiling of this drone comes at a time when the PLA is actively and publicly promoting the use of drones by its military personnel. During the show, the CASC also displayed a handful of smaller short range drones and set up a flashy ground-to-ceiling UAV attack simulation compete with a dozen technicians glued to computer screens in a the make-believe war room. As Guo explained:

Our company has set up a pretty aggressive sales target for UAVs, but the global market competition is quite fierce. There are many similar products in the global market and they are quite mature, so we haven’t had a big impact in the market. It will take some time for our products to be known and accepted.

The Rainbow 4 is the CASC’s latest creation, and is intended to act as the PLA’s answer to the MQ-9 Reaper – a hunter-killer drone mainly used by the US military for reconnaissance and high-precision air strikes. The CH-4 can carry a payload of 345 kg (760 lbs) of missiles of precision-guided bombs, can reach an altitude of 8 km (26000 feet), has a range of 3,500 kilometers, and fly for up to 30 hours depending on how heavy a payload it is carrying.

China_dronetestHowever, it remains much slower than the Reaper, which can fly at a top speed of 482 km/h compared to the Rainbow’s 235 km/h. In addition, the MQ-9 has a much higher payload of 1700 kg  (3800 lbs), which works out to six Hellfire missiles or precision-guided bombs. And while it has greater range – 3000 km vs. the MQ-9’s 1850 km – the Reaper has a service ceiling of up to 18,000 meters.

The PLA also has limited experience in using drones in combat zones; whereas for the USAF, drone use has become second nature. But above all, the most glaring aspect of the “drone gap” is the fact that this latest Chinese drone was not the result of indigenous design or innovation. Much like other aspects of China’s stealth and weapon’s development, it is the result of mimicry.

(U.S. Air Force photo/Staff Sgt. Brian Ferguson)(Released)Nevertheless, China’s plan to market the technology to other nations does mean that the use of UAVs is likely to become much more universal in the coming years. Beyond the US, NATO, Israel, Russia and China, middle powers like India, Pakistan, Brazil and various Sub-Saharan African nations are likely to have their own soon. In addition, certain “rogue states” – i.e. Iran, North Korea, Syria – are likely to have their own as well.

The term “Drone Wars” is likely to become very literal as a result!

Source: gizmodo.com, scmp.com, globalpost.com

The Future of Flight: Morphing Wings

morphing-wingsSince the Wright Brothers developed the world’s first airplane, scientists and aerospace engineers have understood how important airflaps and wing design are to ensuring that a plane is able to achieve lift and land safely. During and after World War II, additional lessons were learned, where the sweep of a wing was found to be central to a plane achieving higher service ceilings and air speed velocities.

Since that time, many notable improvements have been made, but some strictures have remained the same. For example, conventional wings suffer from the problem of being fixed in a single position, which makes some aspects of performance possible but other things extremely difficult. In addition, flaps have remained virtually unchanged over the years, relying on hinged joints that are limited and vulnerable.

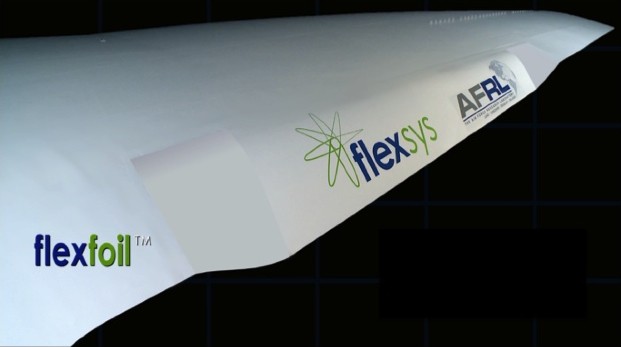

flexfoilIn both cases, the answer may lie in flexible and seamless materials, leading to wings that can change shape as needed. Such technology could not only enable better performance, but remove the need for hinges and gears. Towards this end, Michigan-based FlexSys has developed a way to optimize wing aerodynamics with FlexFoil, a seamless variable geometry airfoil system.

In development since 2001, FlexFoil is made from what is described only as “aerospace materials,” and is seamlessly integrated into the trailing edge of the wing. Based on a technology known as “distributed compliance,” the morphing structure integrates actuators and sensors that, according to Flexsys, results in “large deformations in shape morphing with very small strains.”

flexfoil1According to a 2006 paper co-written by mechanical engineer Dr. Sridhar Kota (the FlexFoil’s inventor), the foils are:

optimized to resist deflection under significant external aerodynamic loading and are just as stiff and strong as a conventional flap.

What this translates to in real terms is a tolerance of over 4500 kg (10,000 lbs) in air loads and the ability to distribute pressure more evenly throughout the wing, resulting in less strain in any one area. It is also said to reduce wind noise by up to 40 percent on landing, and to lessen build-up of both ice and debris. But the biggest benefit comes in terms of fuel economy.

flexfoil2When retrofitted onto a wing, FlexFoil can reduce fuel consumption by a claimed 4 to 8 percent, with that number climbing to 12 percent for those wings that are built are the system. What’s more, the technology could be applied to anything that moves relative to a fluid medium, including things like helicopter rotor blades, wind turbine blades, boat rudders, or pump impellers.

FlexFoil was officially introduced to the public this week at the AIAA (American Institute of Aeronautics and Astronautics) SciTech exposition in Washington, DC. Plans call for flight tests to be performed this July at NASA’s Dryden Flight Research Center, where the flaps of a Gulfstream business jet will be replaced with the foils.

Check out this video of the airwing design and what it does here:

morphing-wings1To be fair, this is not the only case of flexible, morphing aircraft in development right now. In fact, NASA has been looking to create a morphing aircraft concept ever since 2001. So far, this has included collaborating with Boeing and the U.S. Air Force to create the Active Aeroelastic Wing (AAW) which was fitted to the F/A-18 Hornet, a multirole combat jet in use with the USAF.

But looking long-term, NASA hopes to create a design for a morphing airplane (pictured above). Known as the 21st Century Aerospace Vehicle, and sometimes nicknamed the Morphing Airplane, the concept includes a variety of smart technologies that could enable inflight configuration changes for optimum flight characteristics, and is an example of biomimetic technology.

morphing-wings2In this case, the biological design being mimicked is that of a bird. Through the use of smart materials that are flexible and can change their shape on command, the 21st Century Aerospace Vehicle is able to shape its wings by extending the tips out and slightly upward to give it optimal lift capability. In this configuration, the inspiration for the aircraft’s wings is most clear (pictured above).

But once airborne, the aircraft needs a wing that is capable of producing less wind resistance while still maintaining lift. This is why the wings, upon reaching and service ceilings in excess of 3000 meters (10,000 feet), the wings then contract inward and sweep back to minimize drag and increase airspeed velocity.
Though this program has yet to bear fruit, it is an exciting proposal, and provides a glimpse of the future.

Be sure to check out NASA’s video of the CAV too, and keep your eyes on the skies. Chances are, jets that utilize smart, morphing surfaces are going to be there soon!


Sources: gizmag.com, flexsys.com, nasa.gov

The Future is Here: Roboy the Robotic Child!

roboy_splashThe field of robotics has been heated up in recent years. With autonomous killing machines being developed by the USAF, mind-controlled prosthesis for the disabled, juggling robots by Disney, a headless Kenshiro Robot and even 3D printable android, it seems like only a matter of time before Asimov’s Three Laws will need to be applied. Either that, or we might have a Robopocalypse on our hands.

But when you see this latest project in robotics, you might find it hard to imagine an apocalyptic scenario resulting. Forget Terminator, this seems more like something from the realm of Pinocchio or AI. That’s the feeling I get from Roboy, a concept that began back in May of 2012 when the University of Zurich’s Artificial Intelligence Lab committed to creating a fully humanoid robot by March of 2013.

For those doing the math, yes, that is roughly nine months. As if his size and proposed aesthetics weren’t enough, the creators even committed to a timeline that mirrored the time it takes to birth and actual child. And just to complete the illusion, they hope to cover the finished product in a soft, artificial skin. Talk about infanto-centric (assuming that’s even a word)!

But of course, the real breakthrough of Roboy is in the design itself, which borrows from the Kenshiro humanoid and the earlier Ecce model that both rely on artificial muscles to move. At this point, the robot is near completion and should be released next month during the Robots on Tour event in Zurich, Switzerland, providing everything arrives on schedule. At the moment, the long-term purpose of Roboy is to act as a prototype for service robots that will help elderly people remain independent for as long as possible.

I smell another movie reference there, one involving and old man and his friendly robot side-kick. Can you guess which one I am referring to here? Correct, it’s Robot and Frank! And with all the developments in robots happening right now, I’d say we need to do our homework and see all these movies, and reread Asimov’s Robot series while were at it!

And while you’re doing that, be sure to check out this video of the Roboy’s design in action:
